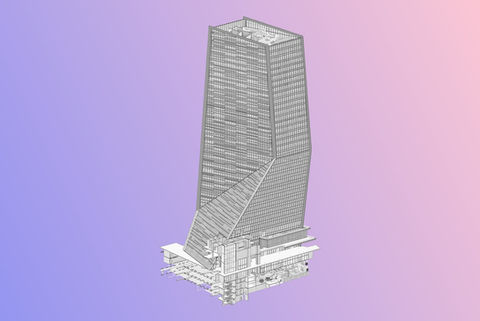

Highrise & industrial buildings

medium to mega projects

We digitize
CADs & scans
into BIM models.



What we do.

Disciplines.

Architecture

Furniture

Structure

MEPF

Landscape

Scans we support.

Matterport

Leica

FARO

NavVis

Trimble

...

.e57

.rcp

.xyz

...

Formats we produce.

Revit (native)

Archicad (native)

and IFC for other requests (Vectorworks, Allplan, Tekla...)

LOD 200

Generic 3D elements
with approximate dimensions.



LOD 200 elements are represented graphically but are generic placeholders, e.g., volume, quantity, location, or orientation. Any information derived from LOD 200 elements must be considered approximate.

LOD 300

Specific 3D elements
with accurate dimensions.



LOD 300 elements are graphically represented as specific systems, objects, or assemblies from which quantity, shape, size, location, and orientation can be measured directly, without having to refer to non-modeled information such as notes or dimension call-outs.

LOD 350

is LOD 300 plus
connections & accessories.

LOD 350 elements are enhanced beyond LOD 300 by the addition of information regarding interfaces with other building systems. For example, a LOD 350 masonry wall element would include jamb conditions, bond beams, grouted cells, dowel locations, and joints – information that enables the model user to coordinate the wall element with other systems in the structure.

Model. Check. Submit.




A hundred buildings we digitized into BIM.


Anchor Project Scans to BIM
